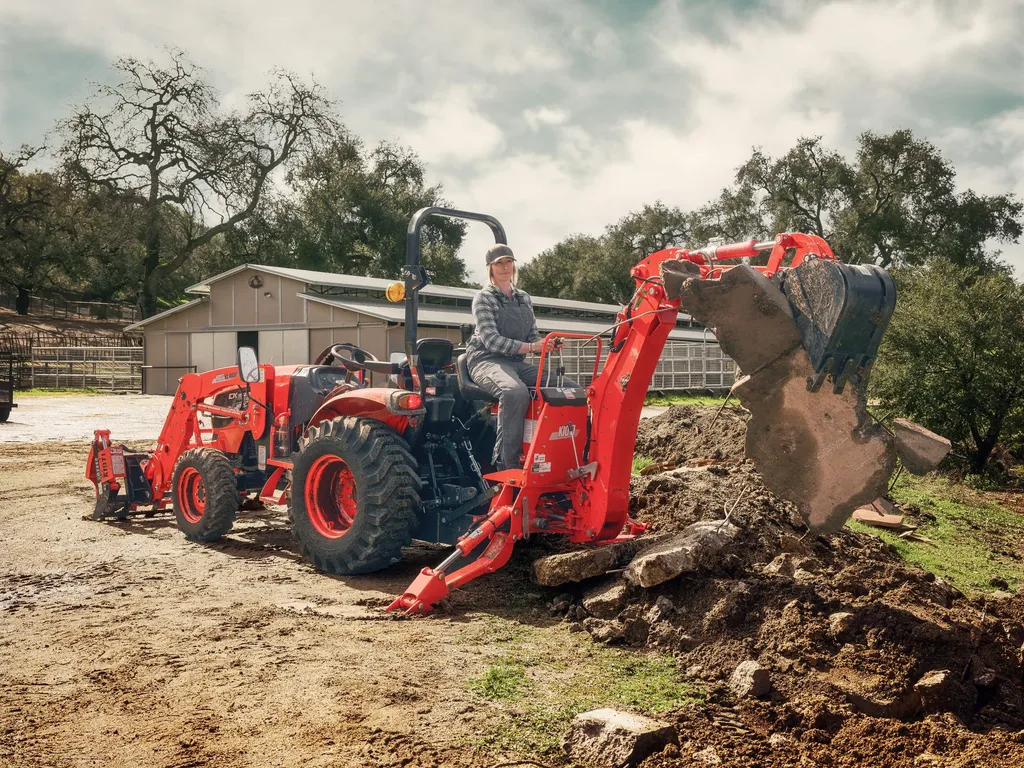

KIOTI CK3520
A 35-horsepower compact tractor with strong loader and PTO capability, available in manual, hydrostatic, synchro-shuttle SE, and factory-cab configurations.
Starting at
$24,265 MSRP
34.9 hp
34.9 hp (26.0 kW)
Engine HP
28.9 hp
28.9 hp (21.6 kW)
PTO HP
1,631 lb
1,631 lb (739.8 kg) @ 24" aft of hitch
3-Pt Lift Capacity
11.7 gpm
11.7 gpm (44.4 L/min), gear pump
Hydraulic Flow
Configurations & Pricing
The CK3520 is available in several transmission and cab configurations. Starting MSRP shown; ask us for a full quote.
| Configuration | Transmission | Starting MSRP |
|---|---|---|
| CK3520 (Manual) | Manual 9F/3R | $24,265 |
| CK3520H (HST) | Hydrostatic 3-range | $25,171 |
| CK3520SE | Synchro shuttle 12x12 | $26,535 |
| CK3520SEH | Hydrostatic 3-range | $28,111 |
| CK3520SEH Cab | Hydrostatic 3-range | $36,937 |
MSRP only. Pricing does not include tires, freight, setup, or dealer options. Ask us about current KIOTI offers.
Full Specifications
Complete manufacturer specifications for the KIOTI CK3520.
Engine
- Gross Horsepower
- 34.9 hp (26.0 kW)
- PTO Horsepower
- 28.9 hp (21.6 kW)
- Displacement
- 111.4 cu in (1,825.5 cc)
- Rated RPM
- 2,600 rpm
- Fuel Capacity
- 9.0 gal (34.1 L)
Drivetrain
- Transmission
- Manual 9F/3R or hydrostatic 3-range (by configuration)
- Drive
- 4WD
PTO
- Rear PTO
- 540 rpm, live
- Mid PTO
- 2,000 rpm (optional)
Hydraulics
- Hydraulic Flow
- 11.7 gpm (44.4 L/min), gear pump
3-Point Hitch
- Category
- Category I
- Lift Capacity
- 1,631 lb (739.8 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 120.8 in (3,070 mm), incl. 3-pt hitch
- Overall Width
- 54.5 in (1,385 mm), min tread
- Overall Height
- 92.9 in (2,360 mm), top of ROPS
- Wheelbase
- 65.7 in (1,670 mm)
- Ground Clearance
- 13.4 in
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- Tier 4 CRDI diesel
- Single-lever joystick loader control
- Live rear + optional mid PTO
- 13.4" ground clearance
- Manual, HST, SE & cab configs
- Category I 3-pt, 1,631 lb lift
Factory Attachments
KIOTI factory-matched attachments for the CK3520.
Front-End Loader
KL4030 / KL4030C
- Compatibility
- Fits the CK20 and CK20SE Series (CK2620, CK3520, CK4020 and H/SE/SEH/Cab variants)
- Max Lift Height (Pivot Pin) - KL4030 / KL4030C
- 98.4 in (2,500 mm) / 98.4 in (2,500 mm)
- Lift Capacity to Full Height (Pivot Pins) - KL4030 / KL4030C
- 1,835 lb (832 kg) / 1,969 lb (893 kg)
- Breakout Force (Pivot Pins) - KL4030 / KL4030C
- 3,464 lb (1,571 kg) / 2,989 lb (1,356 kg)
- Bucket Rollback Force at Ground - KL4030 / KL4030C
- 1,763.7 lb (800 kg) / 2,758 lb (1,251 kg)
- Digging Depth Below Grade - KL4030 / KL4030C
- 5.3 in (135 mm) / 4.8 in (122 mm)
- Bucket Size(s) Available
- 60 in / 66 in
Backhoe
KB2475L
- Compatibility
- Fits the CK20 Series, CK20SE Series
- Digging Depth (Two Foot Flat Bottom)
- 89.7 in (2,280 mm)
- Bucket Digging Force
- 2,817.5 lb (1,278 kg)
- Dipperstick Digging Force
- 2,105 lb (955 kg)
- Reach from Swing Pivot
- 125.1 in (3,180 mm)
- Loading Height (Bucket at 60 deg)
- 72.4 in (1,840 mm)
- Operating Pressure
- 2,466 psi (170 bar)
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
How it compares
Who This Fits
The CK3520 fits owners whose ground has outgrown a sub-compact: heavier loader work, rougher terrain, bigger implements on the 3-point. It's still small enough to store in a garage bay and trailer without a heavy truck. If you're on the fence between this and something smaller, our advice is almost always the same: buy the bigger one.
Common Questions
What transmission does the CK3520 come with?
The CK3520 comes more than one way: Manual 9F/3R or hydrostatic 3-range (by configuration). HST is the easiest to learn and the favorite for loader work and mowing. The gear option costs less and pulls steadily all day. We'll help you pick when we quote it.
Is a front loader available for the CK3520?
Yes — KIOTI offers a factory-matched front-end loader for the CK3520. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new CK3520?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
