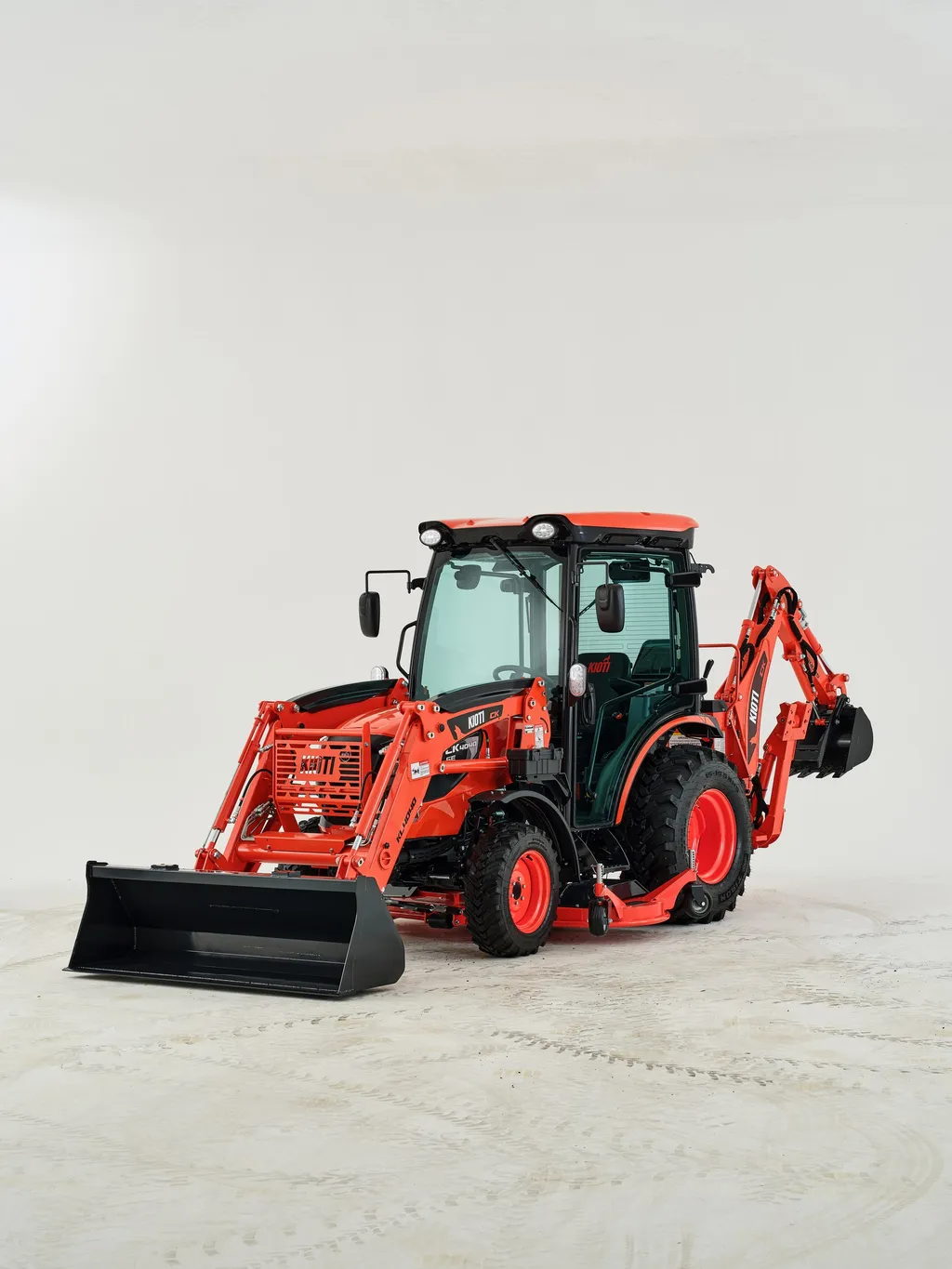

KIOTI CK4040
A 39.6-horsepower compact tractor at the top of KIOTI's newest CK generation, available in manual, hydrostatic, synchro-shuttle SE, and factory-cab configurations.
Starting at
$27,220 MSRP
39.6 hp
39.6 hp (29.5 kW)
Engine HP
35 hp
35.0 hp (26.1 kW)
PTO HP
1,631 lb
1,631 lb (739.8 kg) @ 24" aft of hitch
3-Pt Lift Capacity
11.3 gpm
11.3 gpm (42.9 L/min), gear pump
Hydraulic Flow
2,678.6 lb
2,679 lb (1,215 kg), w/ ag tires
Operating Weight
Configurations & Pricing
The CK4040 is available in several transmission and cab configurations. Starting MSRP shown; ask us for a full quote.
| Configuration | Transmission | Starting MSRP |
|---|---|---|
| CK4040 (Manual) | Manual 9F/3R | $27,220 |
| CK4040H (HST) | Hydrostatic 3-range | $28,230 |
| CK4040SE | Synchro-shuttle 12F/12R | $30,250 |
| CK4040SEH | Hydrostatic 3-range | $31,260 |
| CK4040SEH Cab | Hydrostatic 3-range | $39,340 |
MSRP only. Pricing does not include tires, freight, setup, or dealer options. Ask us about current KIOTI offers.
Full Specifications
Complete manufacturer specifications for the KIOTI CK4040.
Engine
- Gross Horsepower
- 39.6 hp (29.5 kW)
- PTO Horsepower
- 35.0 hp (26.1 kW)
- Displacement
- 111.4 cu in (1,826 cc)
- Rated RPM
- 2,600 rpm
- Fuel Capacity
- 9.0 gal (34.0 L)
Drivetrain
- Transmission
- Manual 9F/3R, synchro-shuttle 12F/12R (SE), or hydrostatic 3-range (by configuration)
- Drive
- 4WD
PTO
- Rear PTO
- 540 rpm, live
- Mid PTO
- 2,000 rpm (optional)
Hydraulics
- Hydraulic Flow
- 11.3 gpm (42.9 L/min), gear pump
3-Point Hitch
- Category
- Category I
- Lift Capacity
- 1,631 lb (739.8 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 120.9 in (3,070 mm), incl. 3-pt hitch
- Overall Width
- 54.5 in (1,385 mm), min tread
- Overall Height
- 92.9 in (2,360 mm)
- Wheelbase
- 65.7 in (1,670 mm)
- Ground Clearance
- 13.4 in (340 mm)
- Turning Radius
- 107.5 in (2,730 mm), with brake
- Operating Weight
- 2,679 lb (1,215 kg), w/ ag tires
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- KIOTI three-cylinder diesel
- Single-lever joystick loader control
- New color LCD instrument display
- 13.4" ground clearance
- Manual, HST, synchro-shuttle SE & factory-cab configs
- Category I 3-pt, 1,631 lb lift (2,101 lb on SE)
Factory Attachments
KIOTI factory-matched attachments for the CK4040.
Front-End Loader
KL4040
- Max Lift Height (to Pivot Point)
- 98.5 in (2,502 mm)
- Lift Capacity to Full Height (at Pivot Pins)
- 1,835 lb (832 kg) - non-self-leveling / 1,969 lb (893 kg) - mechanical self-leveling
- Breakout Force (at Pivot Pins)
- 1,627 lb (738 kg)
- Reach w/ Bucket on Ground
- 65.0 in (1,651 mm)
- Digging Depth Below Grade
- 5.1 in (129 mm)
- Bucket Capacity (Heaped)
- 10.24 cu ft (0.29 cu m)
Backhoe
KB4075
- Digging Depth (Two Foot Flat Bottom)
- 83.4 in (2,119 mm)
- Bucket Digging Force
- 2,817 lb (1,278 kg)
- Dipperstick Digging Force
- 2,105 lb (955 kg)
- Reach from Center Line of Swing Pivot
- 126.4 in (3,211 mm)
- Loading Height (Bucket at 60 deg)
- 75.6 in (1,920 mm)
- Operating Pressure
- 2,466 psi (170 bar)
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
Who This Fits
The CK4040 fits owners whose ground has outgrown a sub-compact: heavier loader work, rougher terrain, bigger implements on the 3-point. It's still small enough to store in a garage bay and trailer without a heavy truck. If you're on the fence between this and something smaller, our advice is almost always the same: buy the bigger one.
Common Questions
What transmission does the CK4040 come with?
The CK4040 comes more than one way: Manual 9F/3R, synchro-shuttle 12F/12R (SE), or hydrostatic 3-range (by configuration). HST is the easiest to learn and the favorite for loader work and mowing. The gear option costs less and pulls steadily all day. We'll help you pick when we quote it.
Is a front loader available for the CK4040?
Yes — KIOTI offers a factory-matched front-end loader for the CK4040. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new CK4040?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
