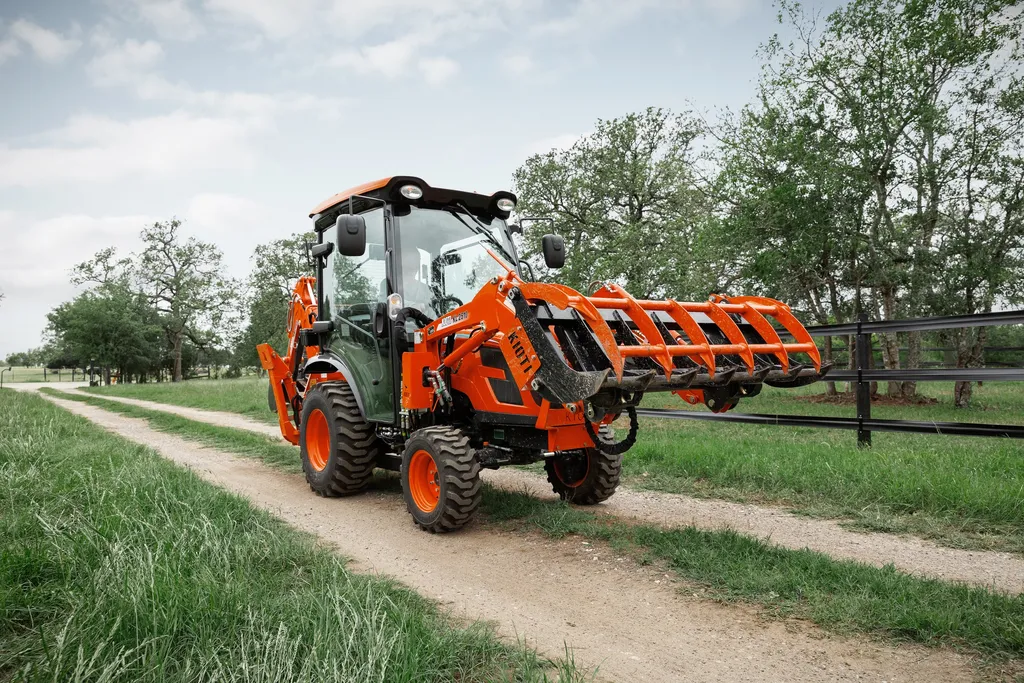

KIOTI CX2510H Cab
The compact CX2510 with a factory cab - full-size capability with weather protection.
Starting at
$30,084 MSRP
24.5 hp
24.5 hp (18.3 kW)
Engine HP
18.8 hp
18.8 hp (14.0 kW)
PTO HP
1,203 lb
1,203 lb (545.7 kg) @ 24" aft of hitch
3-Pt Lift Capacity
11.3 gpm
11.3 gpm (42.9 L/min), gear pump
Hydraulic Flow
2,804 lb
2,804 lb (1,272 kg) with AG tires
Operating Weight
Full Specifications
Complete manufacturer specifications for the KIOTI CX2510H Cab.
Engine
- Gross Horsepower
- 24.5 hp (18.3 kW)
- PTO Horsepower
- 18.8 hp (14.0 kW)
- Engine Model
- KIOTI 3A165LWH-U3, 3-cyl water-cooled 4-cycle turbo diesel
- Displacement
- 100.5 cu in (1,647 cc)
- Rated RPM
- 2,600 rpm
- Fuel Capacity
- 6.6 gal (25.0 L)
Drivetrain
- Transmission
- Infinite 2-range hydrostatic (HST)
- Drive
- 4WD, mechanical engagement
PTO
- Rear PTO
- 540 rpm
- Mid PTO
- 2,000 rpm (standard)
Hydraulics
- Hydraulic Flow
- 11.3 gpm (42.9 L/min), gear pump
3-Point Hitch
- Category
- Category I
- Lift Capacity
- 1,203 lb (545.7 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 111.0 in (2,820 mm), incl. 3-pt hitch
- Overall Width
- 49.4 in (1,256 mm), min tread
- Overall Height
- 86.6 in (2,200 mm), top of cab
- Wheelbase
- 59.8 in (1,520 mm)
- Ground Clearance
- 13.4 in (340 mm)
- Turning Radius
- 9.0 ft (2.7 m) with brake
- Operating Weight
- 2,804 lb (1,272 kg) with AG tires
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- Factory cab
- Cruise control
- Joystick valve
- Standard mid PTO + remote valve
- 1,203 lb 3-pt lift
- 13.4" ground clearance
Factory Attachments
KIOTI factory-matched attachments for the CX2510H Cab.
Front-End Loader
KL2510
- Compatibility
- Fits every CX Series tractor
Backhoe
KB2465
- Digging Depth (Two Foot Flat Bottom)
- 76.30 in (1,940 mm)
- Bucket Digging Force
- 2,817.5 lb (1,278 kg)
- Dipperstick Digging Force
- 1,748 lb (793 kg)
- Reach from Swing Pivot
- 113.10 in (2,875 mm)
- Loading Height (Bucket at 60 deg)
- 63.60 in (1,615 mm)
- Operating Pressure
- 2,466 psi (170 bar)
Mid-Mount Mower
KM2560
- Cutting Width
- 60 in (1,524 mm)
- Deck Type
- Side discharge, 10 gauge deck, drive-over deck
- Cutting Height Range
- 1.50 - 4.50 in (38.1 - 114.3 mm)
- Blade Spindle Speed
- 3,334 rpm
- Blade Count
- 3
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
Who This Fits
The CX2510H Cab fits owners whose ground has outgrown a sub-compact: heavier loader work, rougher terrain, bigger implements on the 3-point. It's still small enough to store in a garage bay and trailer without a heavy truck. If you're on the fence between this and something smaller, our advice is almost always the same: buy the bigger one.
Common Questions
What transmission does the CX2510H Cab come with?
The CX2510H Cab runs a hydrostatic transmission (HST). No clutching, just pedal-controlled forward and reverse. It's the easiest transmission to learn on and the most common choice for loader work, mowing, and general chores.
Is a front loader available for the CX2510H Cab?
Yes — KIOTI offers a factory-matched front-end loader for the CX2510H Cab. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new CX2510H Cab?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
