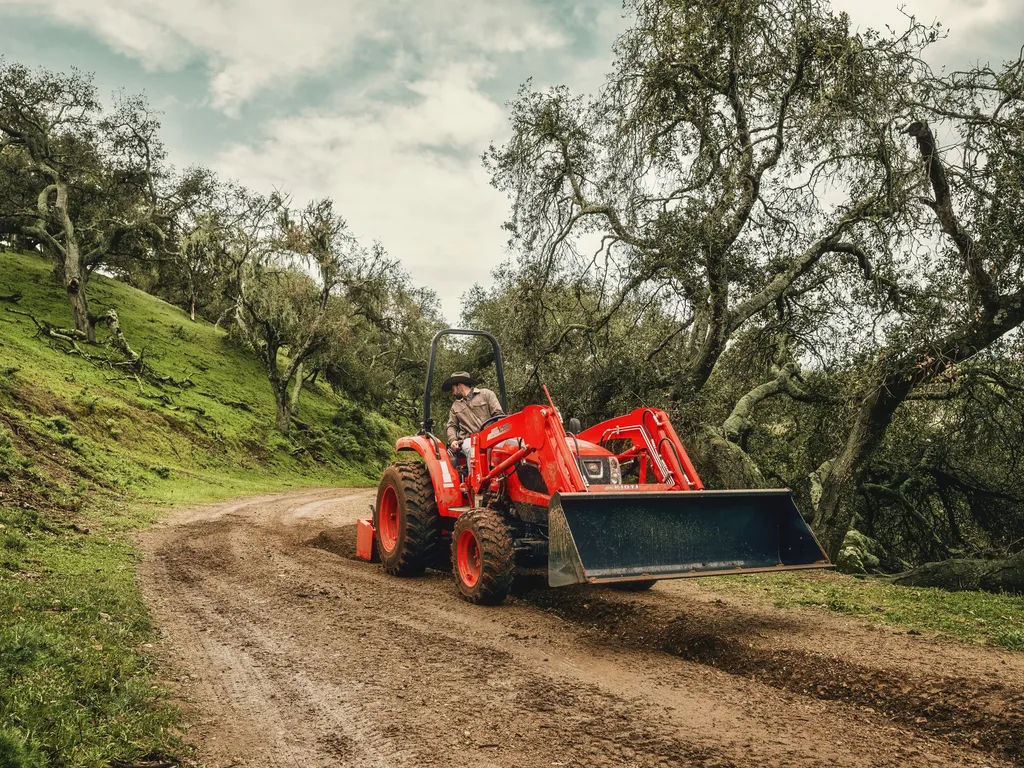

KIOTI NS5310H
A 50.3-horsepower hydrostatic compact utility tractor — the mid-step in the NS Series, with push-button 4WD, a Category I hitch, and independent 540 PTO.
Starting at
$37,205 MSRP
50.3 hp
50.3 hp (37.5 kW)
Engine HP
41.8 hp
41.8 hp (31.2 kW)
PTO HP
2,940 lb
2,940 lb (1,333.6 kg) @ 24" aft of hitch
3-Pt Lift Capacity
16.5 gpm
16.5 gpm (62.4 L/min), gear pump
Hydraulic Flow
4,027 lb
4,027 lb (1,827.0 kg), w/ AG tires
Operating Weight
Full Specifications
Complete manufacturer specifications for the KIOTI NS5310H.
Engine
- Gross Horsepower
- 50.3 hp (37.5 kW)
- PTO Horsepower
- 41.8 hp (31.2 kW)
- Engine Model
- KIOTI 3HT-S4TH45A, 3-cyl water-cooled turbo diesel, CRDI
- Displacement
- 111.4 cu in (1,826.0 cc)
- Rated RPM
- 2,600 rpm
- Fuel Capacity
- 13.2 gal (50.0 L)
Drivetrain
- Transmission
- Hydrostatic, 3-range
- Drive
- 4WD (push-button)
PTO
- Rear PTO
- 540 rpm, independent
- Mid PTO
- 2,000 rpm (optional)
Hydraulics
- Hydraulic Flow
- 16.5 gpm (62.4 L/min), gear pump
3-Point Hitch
- Category
- Category I
- Lift Capacity
- 2,940 lb (1,333.6 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 136.4 in (3,465.0 mm), incl. 3-pt hitch
- Overall Width
- 67.1 in (1,704.3 mm), min tread
- Overall Height
- 98.4 in (2,499.4 mm), top of ROPS
- Wheelbase
- 75.5 in (1,918 mm)
- Ground Clearance
- 13.4 in (340.4 mm)
- Turning Radius
- 11.0 ft (3.4 m), with brake
- Operating Weight
- 4,027 lb (1,827.0 kg), w/ AG tires
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- Push-button 4WD
- Hydrostatic 3-range transmission
- Independent 540 rear PTO
- 16.5 gpm hydraulics
- 2,940 lb 3-pt lift
- Wet multi-disc brakes
Factory Attachments
KIOTI factory-matched attachments for the NS5310H.
Front-End Loader
KL5810
- Maximum Lift Height (To Pivot Pin)
- 106.3 in (2,700.0 mm)
- Maximum Lift Height (Under Level Bucket)
- 100.9 in (2,562.9 mm)
- Lift Capacity (At Pivot Pin)
- 2,621.0 lb (1,188.9 kg)
- Breakout Force (At Pivot Pin)
- 3,896.0 lb (1,767.2 kg)
- Rollback Force (At Ground Line)
- 3,880.0 lb (1,759.9 kg)
- Reach (With Bucket on Ground)
- 74.4 in (1,889.8 mm)
- Digging Depth Below Grade
- 10.2 in (259.1 mm)
- Maximum Dump Angle
- 67 deg
Backhoe
KB2485
- Digging Depth
- 94.4 in (2,397.8 mm)
- Reach from Center Line of Swing Pivot
- 136.1 in (3,456.9 mm)
- Loading Height (Bucket at 60 deg)
- 80.3 in (2,039.6 mm)
- Bucket Digging Force
- 3,748.0 lb (1,700.1 kg)
- Dipperstick Digging Force
- 2,205.0 lb (1,000.2 kg)
- Operating Pressure
- 2,466.0 psi (170.0 bar)
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
Who This Fits
The NS5310H is for real work on real acreage. Feeding animals, clearing brush, running a rotary cutter for hours at a stretch. It handles full-size implements without full-size bulk, and it's the class we sell most to small farms around here.
Common Questions
What transmission does the NS5310H come with?
The NS5310H runs a hydrostatic transmission (HST). No clutching, just pedal-controlled forward and reverse. It's the easiest transmission to learn on and the most common choice for loader work, mowing, and general chores.
Is a front loader available for the NS5310H?
Yes — KIOTI offers a factory-matched front-end loader for the NS5310H. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new NS5310H?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
