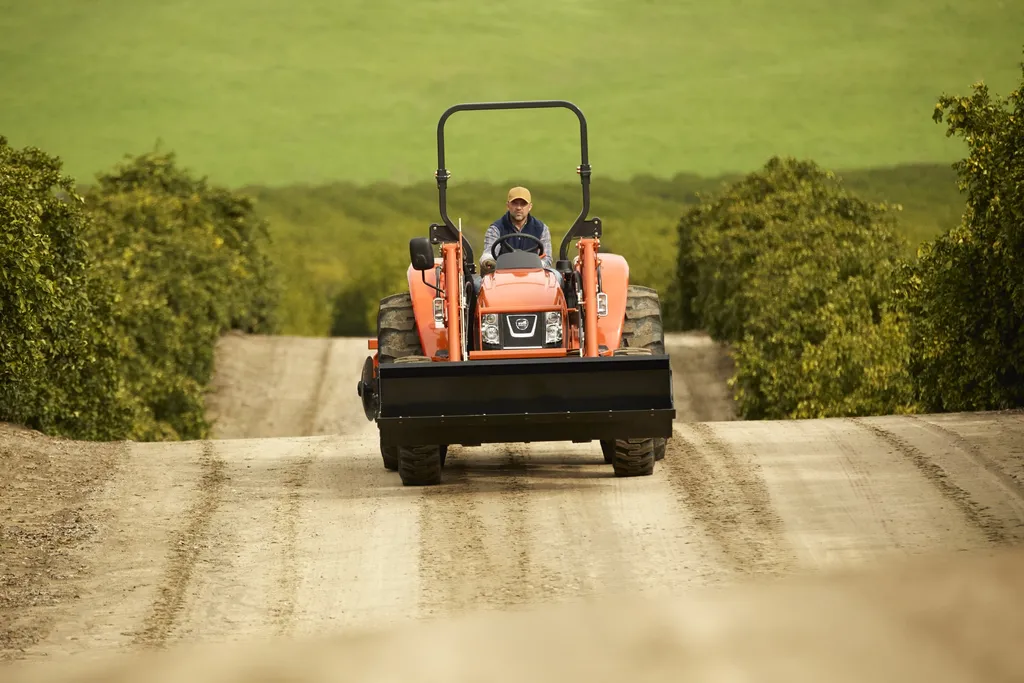

KIOTI RX7320
A 73-horsepower cab utility tractor at the top of the KIOTI RX20 Series — power-shuttle transmission (creeper optional), Category II hitch, and a climate-controlled cab.
Starting at
$50,188 MSRP
73 hp
73.0 hp (54.4 kW)
Engine HP
63 hp
63.0 hp (47.0 kW)
PTO HP
3,898 lb
3,898 lb (1,768.1 kg) @ 24" aft of hitch
3-Pt Lift Capacity
19.2 gpm
19.2 gpm (72.8 L/min), gear pump
Hydraulic Flow
6,162 lb
6,162 lb (2,795.0 kg), w/ AG tires
Operating Weight
Configurations & Pricing
The RX7320 is available in several transmission and cab configurations. Starting MSRP shown; ask us for a full quote.
| Configuration | Transmission | Starting MSRP |
|---|---|---|
| RX7320PC (Power Shuttle, Cab) | Power Shuttle 12Fx12R | $50,188 |
| RX7320PCC (Power Shuttle w/ Creeper, Cab) | Power Shuttle w/ Creeper 24Fx24R | $50,639 |
MSRP only. Pricing does not include tires, freight, setup, or dealer options. Ask us about current KIOTI offers.
Full Specifications
Complete manufacturer specifications for the KIOTI RX7320.
Engine
- Gross Horsepower
- 73.0 hp (54.4 kW)
- PTO Horsepower
- 63.0 hp (47.0 kW)
- Engine Model
- KIOTI 4F243T, 4-cyl water-cooled turbo diesel, CRDI
- Displacement
- 148.6 cu in (2,435.1 cc)
- Rated RPM
- 2,600 rpm
- Fuel Capacity
- 25.0 gal (94.6 L)
Drivetrain
- Transmission
- Power Shuttle 12Fx12R (creeper 24Fx24R optional, by configuration)
- Drive
- 4WD (push-button)
PTO
- Rear PTO
- 540 / 540E rpm, independent
Hydraulics
- Hydraulic Flow
- 19.2 gpm (72.8 L/min), gear pump
3-Point Hitch
- Category
- Category II
- Lift Capacity
- 3,898 lb (1,768.1 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 146.3 in (3,716.0 mm), incl. 3-pt hitch
- Overall Width
- 77.2 in (1,960.9 mm), min tread
- Overall Height
- 104.5 in (2,654.3 mm), top of cab
- Wheelbase
- 83.9 in (2,131.1 mm)
- Ground Clearance
- 17.3 in (439.4 mm)
- Turning Radius
- 11.2 ft (3.4 m), with brake
- Operating Weight
- 6,162 lb (2,795.0 kg), w/ AG tires
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- Power Shuttle 12Fx12R (creeper optional)
- Climate-controlled cab
- Category II 3-point hitch
- Independent 540/540E rear PTO
- 3,898 lb 3-pt lift
- Wet multi-disc brakes
Factory Attachments
KIOTI factory-matched attachments for the RX7320.
Front-End Loader
KL7320
- Maximum Lift Height (To Pivot Pin)
- 133.9 in (3,401.1 mm)
- Clearance (With Bucket Dumped)
- 102.3 in (2,598.4 mm)
- Reach (With Bucket on Ground)
- 80.4 in (2,042.2 mm)
- Lift Capacity to Full Height (At Pivot Pins)
- 3,384.0 lb (1,535.0 kg)
- Breakout Force (At Pivot Pins)
- 5,359.0 lb (2,430.8 kg)
- Bucket Rollback Force (At Ground Line)
- 5,029.0 lb (2,281.1 kg)
- Digging Depth Below Grade
- 6.5 in (165.1 mm)
- Bucket Size Available (QA)
- 82.0 in (2,082.8 mm)
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
How it compares
Who This Fits
The RX7320 is a working tractor for farms and heavy chores: hay ground, big loader work, PTO implements that punish smaller machines. If you're feeding cattle or maintaining serious acreage, this is the class built for it. It's also the class the owner runs on his own farm.
Common Questions
What transmission does the RX7320 come with?
The RX7320 runs a Power Shuttle 12Fx12R (creeper 24Fx24R optional, by configuration). Direction changes happen on a shuttle lever, no clutch-pedal dance during loader work. At this horsepower it's the setup most buyers want for steady fieldwork.
Is a front loader available for the RX7320?
Yes — KIOTI offers a factory-matched front-end loader for the RX7320. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new RX7320?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
