LS MT226E

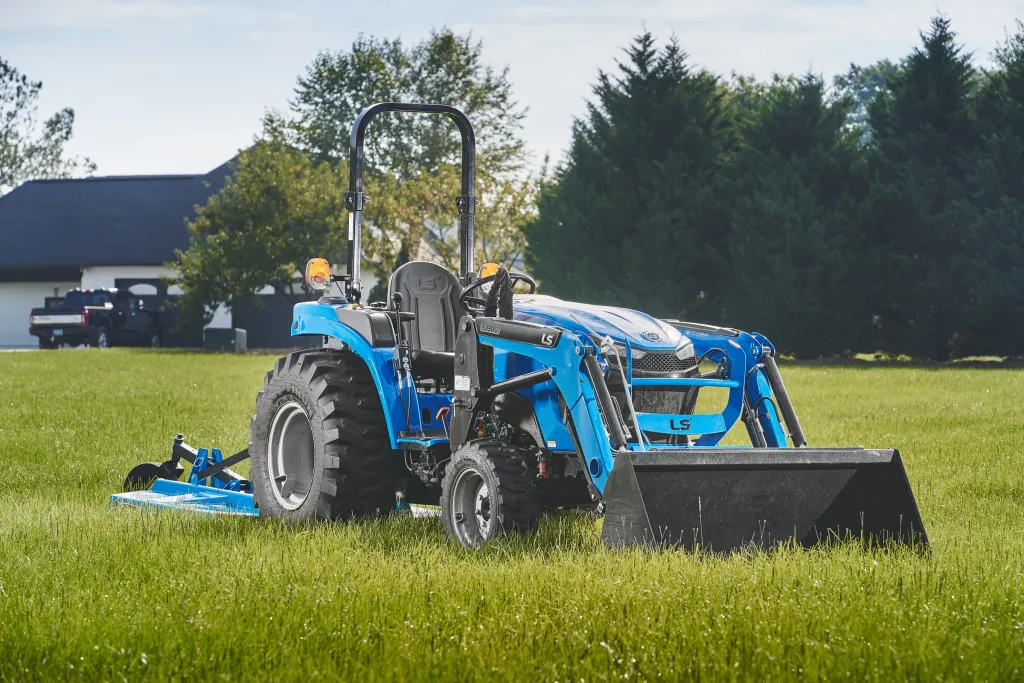

A 24.6-horsepower value compact tractor available in gear and hydrostatic configurations, including a factory-cab model, with an independent 540 PTO.
Starting at
$18,101 MSRP
24.6 hp
Engine HP
17.1 hp
PTO HP
1,433 lbs
1,433 lbs (at hitch end)
3-Pt Lift Capacity
11.7 gpm
11.7 gpm total flow
Hydraulic Flow
3,007 lbs
3,007 lbs (without ballast)
Operating Weight
Configurations & Pricing
The MT226E is available in several transmission and cab configurations. Starting MSRP shown; ask us for a full quote.
| Configuration | Transmission | Starting MSRP |
|---|---|---|
| MT226ED (Gear, dual-pedal) | Synchro Shuttle 12F/12R | $18,101 |
| MT226E (Gear) | Synchro Shuttle 12F/12R | $18,641 |
| MT226HE (HST) | Hydrostatic 3-range | $19,766 |
| MT226HEC (HST Cab) | Hydrostatic 3-range | $27,866 |
MSRP only. Pricing does not include tires, freight, setup, or dealer options. Ask us about current LS offers.
Full Specifications
Complete manufacturer specifications for the LS MT226E.
Engine
- Gross Horsepower
- 24.6 hp
- PTO Horsepower
- 17.1 hp
- Engine Model
- Mitsubishi S3L2-W463G-TAC (3-cylinder IDI diesel)
- Displacement
- 80.4 in³
- Rated RPM
- 2,500 rpm
- Fuel Capacity
- 10.6 gal
Drivetrain
- Transmission
- Hydrostatic (HST), 3 ranges
- Drive
- 4WD
PTO
- Rear PTO
- 540 rpm (independent)
Hydraulics
- Hydraulic Flow
- 11.7 gpm total flow
3-Point Hitch
- Category
- Category I 3-point
- Lift Capacity
- 1,433 lbs (at hitch end)
Dimensions
- Overall Length
- 119 in (frame to link)
- Overall Width
- 66 in
- Overall Height
- 95 in (to top of ROPS)
- Wheelbase
- 66 in
- Operating Weight
- 3,007 lbs (without ballast)
Specs sourced from official LS manufacturer literature, current as of July 2026.
Standard Highlights
- Available in gear, hydrostatic, and factory-cab configurations
- Independent 540 rear PTO (MT226ED is transmission-driven)
- Category I 3-point hitch, 1,433 lb lift capacity
- New LS family styling with LED lights
Factory Attachments
LS factory-matched attachments for the MT226E.
Front-End Loader
LL3001 / LL3002
- Bucket Size
- 66 in
- Maximum Lift Height
- 94.3 in
- Clearance With Attachment Dump
- 67 in
- Reach At Maximum Height
- 14.4 in
- Maximum Dump Angle
- 48 deg
- Maximum Rollback Angle
- 42.5 deg
- Digging Depth
- 4.8 in
- Overall Height In Carry Position
- 51.2 in
- Lift Capacity (At Pivot Pin, 1.5m)
- 1,965 lb
- Breakout Force (At Pivot Pin)
- 2,962 lb
- Approx. Weight (Loader w/o Bucket)
- 741 lb
Backhoe
LB3001 / LB3002
- Digging Depth
- 97.2 in
- Reach From Centerline Of Swing Pivot
- 127.2 in
- Loading Height
- 76.2 in
- Swing Arc
- 160 deg
- Transport Height
- 81.8 in
- Bucket Rotating
- 180 deg
- Stabilizer Spread (Down Position)
- 67.5 in
- Stabilizer Spread (Up Position)
- 50 in
- Bucket Digging Force
- 3,663 lb
Finish Mower
LM3172
- Cutting Width
- 72 in
- Overall Width
- 76 in
- Discharge
- Rear discharge
- Weight
- 661 lb
- PTO HP Range
- 20-40 hp
- Cutting Height
- 3/4 - 4 3/4 in
- Deck Material
- 3/16 in
- Blade Size
- 2 3/8 in x 1/4 in x 25 in
- Hitch
- Category 1
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
Who This Fits
The MT226E fits owners whose ground has outgrown a sub-compact: heavier loader work, rougher terrain, bigger implements on the 3-point. It's still small enough to store in a garage bay and trailer without a heavy truck. If you're on the fence between this and something smaller, our advice is almost always the same: buy the bigger one.
Common Questions
What transmission does the MT226E come with?
The MT226E runs a hydrostatic transmission (HST). No clutching, just pedal-controlled forward and reverse. It's the easiest transmission to learn on and the most common choice for loader work, mowing, and general chores.
Is a front loader available for the MT226E?
Yes — LS offers a factory-matched front-end loader for the MT226E. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new MT226E?
New LS tractors carry LS's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
