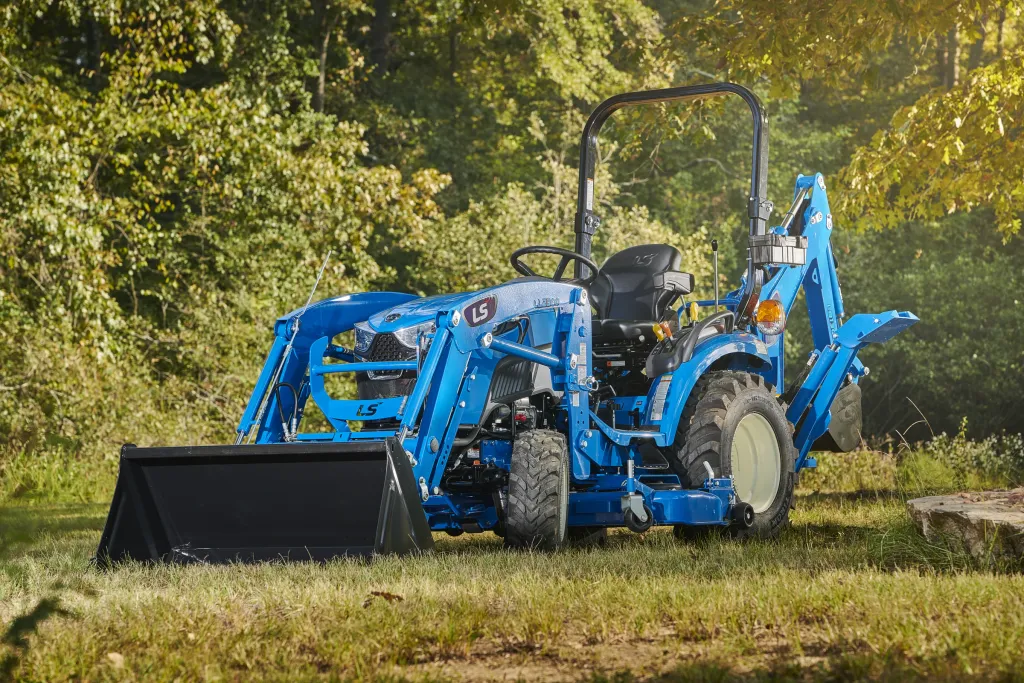

LS MT225S
A 24.7-horsepower sub-compact tractor with hydrostatic drive, an independent 540 PTO, and an optional drive-over mid-mount mower deck.
Starting at
$17,752 MSRP
24.7 hp
Engine HP
19.3 hp
PTO HP
1,896 lbs
1,896 lbs (at hitch end)
3-Pt Lift Capacity
9.3 gpm
9.3 gpm total flow
Hydraulic Flow
1,764 lbs
1,764 lbs (without ballast)
Operating Weight
Full Specifications
Complete manufacturer specifications for the LS MT225S.
Engine
- Gross Horsepower
- 24.7 hp
- PTO Horsepower
- 19.3 hp
- Engine Model
- Yanmar 3TNV80F-ZXKLST (3-cylinder IDI diesel)
- Displacement
- 77.3 in³
- Rated RPM
- 2,800 rpm
- Fuel Capacity
- 6.79 gal
Drivetrain
- Transmission
- Hydrostatic (HST), 3 ranges
- Drive
- 4WD
PTO
- Rear PTO
- 540 rpm (independent)
- Mid PTO
- 2,500 rpm (optional)
Hydraulics
- Hydraulic Flow
- 9.3 gpm total flow
3-Point Hitch
- Category
- Category I 3-point
- Lift Capacity
- 1,896 lbs (at hitch end)
Dimensions
- Overall Length
- 111.9 in (frame to link)
- Overall Width
- 48.7 in
- Overall Height
- 86.4 in (to top of ROPS)
- Wheelbase
- 63.4 in
- Operating Weight
- 1,764 lbs (without ballast)
Specs sourced from official LS manufacturer literature, current as of July 2026.
Standard Highlights
- 3-range hydrostatic transmission with 2-pedal control
- Independent 540 rear PTO, optional 2,500 rpm mid-PTO
- Optional drive-over mid-mount mower deck
- Standard tilt steering and foldable ROPS
Factory Attachments
LS factory-matched attachments for the MT225S.
Front-End Loader
LL2300
- Bucket Size
- 54.3 in
- Maximum Lift Height
- 84.4 in
- Clearance With Attachment Dump
- 59.1 in
- Reach At Maximum Height
- 17.9 in
- Maximum Dump Angle
- 55 deg
- Maximum Rollback Angle
- 40 deg
- Digging Depth
- 4.5 in
- Overall Height In Carry Position
- 46 in
- Lift Capacity (At Pivot Pin)
- 1,067 lb
- Breakout Force (At Pivot Pin)
- 2,290 lb
- Approx. Weight (Loader w/o Bucket)
- 708 lb
Backhoe
LB1300
- Digging Depth
- 84.9 in
- Reach From Centerline Of Swing Pivot
- 113.7 in
- Loading Height
- 64.7 in
- Swing Arc
- 180 deg
- Transport Height
- 73.4 in
- Bucket Rotating
- 177 deg
- Stabilizer Spread (Down Position)
- 82.2 in
- Stabilizer Spread (Up Position)
- 65.4 in
- Bucket Digging Force
- 3,013 lb
Mid-Mount Mower
LM2360
- Cutting Width
- 60 in (1,524 mm)
- Cutting Height
- 1-4 in (25.4-101.6 mm), dial adjustment
- Number of Blades
- 3
- Max Blade Tip Speed
- 76.2 m/s (15,003 fpm)
- Deck Thickness
- 3.0 mm (0.15 in)
- Total Weight
- 167 kg (368 lb)
- Drive Type
- U-Joint & V-Belt (Double)
- Mounting / Attach Type
- 3-Point upper link, semi drive-over
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
Who This Fits
The MT225S is a good fit for property owners running a few acres. Mowing, brush hogging, moving gravel or firewood, and general chores where a loader and a PTO implement cover most of the workload. It's sized to be easy to store, easy to trailer, and easy to learn on if this is a first tractor.
Common Questions
What transmission does the MT225S come with?
The MT225S runs a hydrostatic transmission (HST). No clutching, just pedal-controlled forward and reverse. It's the easiest transmission to learn on and the most common choice for loader work, mowing, and general chores.
Is a front loader available for the MT225S?
Yes — LS offers a factory-matched front-end loader for the MT225S. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new MT225S?
New LS tractors carry LS's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
