LS XJ2025H

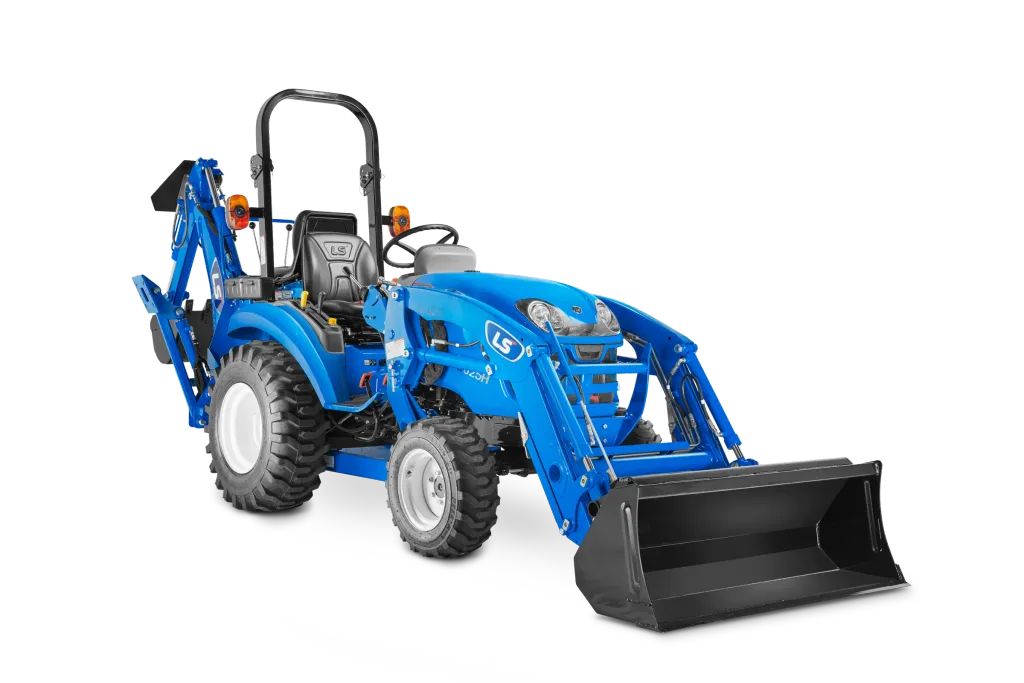

A 24.7-horsepower sub-compact tractor with a 3-cylinder Mitsubishi diesel, 2-range hydrostatic drive, differential lock, and a strong 1,433 lb three-point hitch for loader and backhoe work.
Starting at
$16,526 MSRP
24.7 hp
24.7 hp (18.4 kW)
Engine HP
18.5 hp
18.5 hp (13.8 kW)
PTO HP
1,433 lb
1,433 lb (at hitch end)
3-Pt Lift Capacity
8.5 gpm
8.5 gpm total (5.9 gpm implement + 2.6 gpm steering)
Hydraulic Flow
1,689 lb
1,689 lb (without ballast)
Operating Weight
Full Specifications
Complete manufacturer specifications for the LS XJ2025H.
Engine
- Gross Horsepower
- 24.7 hp (18.4 kW)
- PTO Horsepower
- 18.5 hp (13.8 kW)
- Engine Model
- Mitsubishi S3L2 (Tier 4)
- Displacement
- 80.4 in³ (1,318 cc)
- Rated RPM
- 2,500 rpm
- Fuel Capacity
- 6.6 gal (25.0 L)
Drivetrain
- Transmission
- Hydrostatic Drive, 2 Ranges
- Drive
- 4WD
PTO
- Rear PTO
- Independent, 540 rpm (standard)
- Mid PTO
- Independent, 2,000 rpm (standard)
Hydraulics
- Hydraulic Flow
- 8.5 gpm total (5.9 gpm implement + 2.6 gpm steering)
3-Point Hitch
- Category
- Category I, position control
- Lift Capacity
- 1,433 lb (at hitch end)
Dimensions
- Overall Length
- 103 in (bumper to link)
- Overall Width
- 44.9 in (with tires)
- Overall Height
- 84.5 in (to top of ROPS)
- Wheelbase
- 59 in
- Operating Weight
- 1,689 lb (without ballast)
Specs sourced from official LS manufacturer literature, current as of July 2026.
Standard Highlights
- Tier 4 Mitsubishi 3-cylinder diesel
- 2-range hydrostatic transmission
- Independent 540 rear + 2,000 mid PTO
- Category I 3-point hitch, 1,433 lb lift
- Differential lock and hydrostatic power steering
- Illuminated digital dash, foldable ROPS
Factory Attachments
LS factory-matched attachments for the XJ2025H.
Front-End Loader
LL2102
- Bucket Size
- 50 in
- Maximum Lift Height
- 85.7 in
- Clearance With Attachment Dump
- 63.3 in
- Reach At Maximum Height
- 25.1 in
- Maximum Dump Angle
- 50 deg
- Maximum Rollback Angle
- 38 deg
- Digging Depth
- 3.7 in
- Overall Height In Carry Position
- 43.2 in
- Lift Capacity (@ Pivot Pin, 1.5m Height)
- 1,111 lbf
- Lift Capacity (@ Pivot Pin, Max Height)
- 1,091 lbf
- Breakout Force (At Pivot Pin)
- 1,426 lb
- Approx. Weight (Loader w/o Bucket)
- 580 lb
Backhoe
LB1104
- Digging Depth
- 79.3 in
- Reach From Centerline Of Swing Pivot
- 113.3 in
- Loading Height
- 56.9 in
- Swing Arc
- 150 deg
- Transport Height
- 75.3 in
- Bucket Rotating
- 163 deg
- Stabilizer Spread (Down Position)
- 87.8 in
- Stabilizer Spread (Up Position)
- 55.7 in
- Bucket Digging Force
- 2,097 lb
Mid-Mount Mower
LM3560
- Cutting Width
- 60 in (1,521 mm)
- Cutting Height
- 1", 1 5/8", 2 1/4", 2 7/8", 3 1/2", 4 1/8" (2.5/4/5/7/9/10 cm), wheel pin height adjustment
- Number of Blades
- 3
- Max Blade Tip Speed
- 81.3 m/s (16,000 fpm)
- Deck Thickness
- 3.4 mm (0.133 in)
- Total Weight
- 169 kg (372 lb)
- Drive Type
- Belt
- Mounting Type
- 3-point linkage
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
Who This Fits
The XJ2025H is a good fit for property owners running a few acres. Mowing, brush hogging, moving gravel or firewood, and general chores where a loader and a PTO implement cover most of the workload. It's sized to be easy to store, easy to trailer, and easy to learn on if this is a first tractor.
Common Questions
What transmission does the XJ2025H come with?
The XJ2025H runs a hydrostatic transmission (HST). No clutching, just pedal-controlled forward and reverse. It's the easiest transmission to learn on and the most common choice for loader work, mowing, and general chores.
Is a front loader available for the XJ2025H?
Yes — LS offers a factory-matched front-end loader for the XJ2025H. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new XJ2025H?
New LS tractors carry LS's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
