KIOTI CS Series
The KIOTI CS Series is built for owners of small to mid-sized properties who need a capable, easy-to-run machine for mowing, loader work, and everyday chores. Sub-compact size keeps them simple to store and trailer, while a hydrostatic transmission and category I hitch make them versatile with a wide range of implements.
5
Models
21–24.5 hp
Horsepower Range
$15,939
Starting MSRP
CS Series Lineup
Every CS Series model currently in the catalog.
CS20 Series

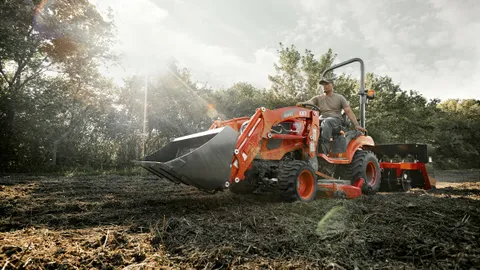

KIOTI CS2220H
A sub-compact CS Series tractor with independent PTO and cruise control - sized for loader work, mowing, and everyday property chores.
- PTO Horsepower
- 16.3 hp (12.2 kW)
- 3-Pt Lift Capacity
- 700 lb (318 kg) @ 24" aft of hitch
Starting at
$15,939

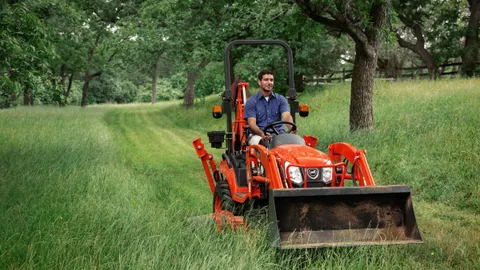

KIOTI CS2520H
A sub-compact CS Series tractor with independent PTO and cruise control - sized for loader work, mowing, and everyday property chores.
- PTO Horsepower
- 18.5 hp (13.8 kW)
- 3-Pt Lift Capacity
- 700 lb (318 kg) @ 24" aft of hitch
Starting at
$17,799
CS30 Series
KIOTI CS2230H
The newest CS30 sub-compact - a larger engine and standard joystick valve for more demanding loader and property work.
- PTO Horsepower
- 16.7 hp (12.5 kW)
- 3-Pt Lift Capacity
- 700 lb (318 kg) @ 24" aft of hitch
Starting at
$16,458
KIOTI CS2530H
The newest CS30 sub-compact - a larger engine and standard joystick valve for more demanding loader and property work.
- PTO Horsepower
- 19.3 hp (14.3 kW)
- 3-Pt Lift Capacity
- 700 lb (318 kg) @ 24" aft of hitch
Starting at
$18,257
KIOTI CS2530H Cab
The CS30 sub-compact with KIOTI's industry-first factory climate-controlled cab - heat, A/C, and a suspension seat.
- PTO Horsepower
- 19.3 hp (14.3 kW)
- 3-Pt Lift Capacity
- 700 lb (318 kg) @ 24" aft of hitch
Starting at
$26,849
Compare CS Series Specs
A side-by-side look at the numbers that matter most. Full specs live on each model's page.
| Spec | CS2220H | CS2520H | CS2230H | CS2530H | CS2530H Cab |
|---|---|---|---|---|---|
| Gross Horsepower | 21.0 hp (15.6 kW) | 24.5 hp (18.3 kW) | 21.0 hp (15.7 kW) | 24.5 hp (18.3 kW) | 24.5 hp (18.3 kW) |
| PTO Horsepower | 16.3 hp (12.2 kW) | 18.5 hp (13.8 kW) | 16.7 hp (12.5 kW) | 19.3 hp (14.3 kW) | 19.3 hp (14.3 kW) |
| Displacement | 61.5 cu in (1,007 cc) | 61.5 cu in (1,007 cc) | 75.2 cu in (1,233 cc) | 75.2 cu in (1,233 cc) | 75.2 cu in (1,233 cc) |
| Transmission | Infinite 2-range hydrostatic (HST) | Infinite 2-range hydrostatic (HST) | Infinite 2-range hydrostatic (HST) | Infinite 2-range hydrostatic (HST) | Infinite 2-range hydrostatic (HST) |
| Hydraulic Flow | 7.0 gpm (26.4 L/min), gear pump | 7.0 gpm (26.4 L/min), gear pump | Open center; implement 4.9 gpm (18.7 L/min), steering 2.03 gpm (7.7 L/min) | Open center; implement 4.9 gpm (18.7 L/min), steering 2.03 gpm (7.7 L/min) | Open center; implement 4.9 gpm (18.7 L/min), steering 2.03 gpm (7.7 L/min) |
| Lift Capacity | 700 lb (318 kg) @ 24" aft of hitch | 700 lb (318 kg) @ 24" aft of hitch | 700 lb (318 kg) @ 24" aft of hitch | 700 lb (318 kg) @ 24" aft of hitch | 700 lb (318 kg) @ 24" aft of hitch |
| Operating Weight | 1,554 lb (705 kg) with AG tires | 1,554 lb (705 kg) with AG tires | 1,735 lb (787 kg) with AG tires | 1,735 lb (787 kg) with AG tires | 2,403 lb (1,090 kg) with AG tires |
| Ground Clearance | 6.4 in (162 mm) | 6.4 in (162 mm) | 6.4 in (162 mm) | 6.4 in (162 mm) | 6.4 in (162 mm) |
Want to compare across series too? Compare any two to four models side by side.
Common Questions
What's the difference between the models in the CS Series?
Models within the CS Series share the same overall platform but differ in engine output, transmission, and available options like cab or loader packages. Use the comparison table above to see how each model stacks up, or contact us and we'll help match a model to your property and workload.
Which CS Series model is right for me?
That depends on your property size, the implements you plan to run, and your budget. Generally, more horsepower and lift capacity suit heavier loader work and larger implements, while the lower end of the range is easier to store and trailer. Tell us what you're working on and we'll point you to the right model.
Can I get current pricing and availability on a CS Series tractor?
Yes. The MSRP shown on each model page is the manufacturer's suggested price — reach out for current dealer pricing, financing options, and what's in stock.
Get a Quote on a CS Series Tractor
Tell us what you're working on and we'll follow up with pricing and availability.
Request a Quote
