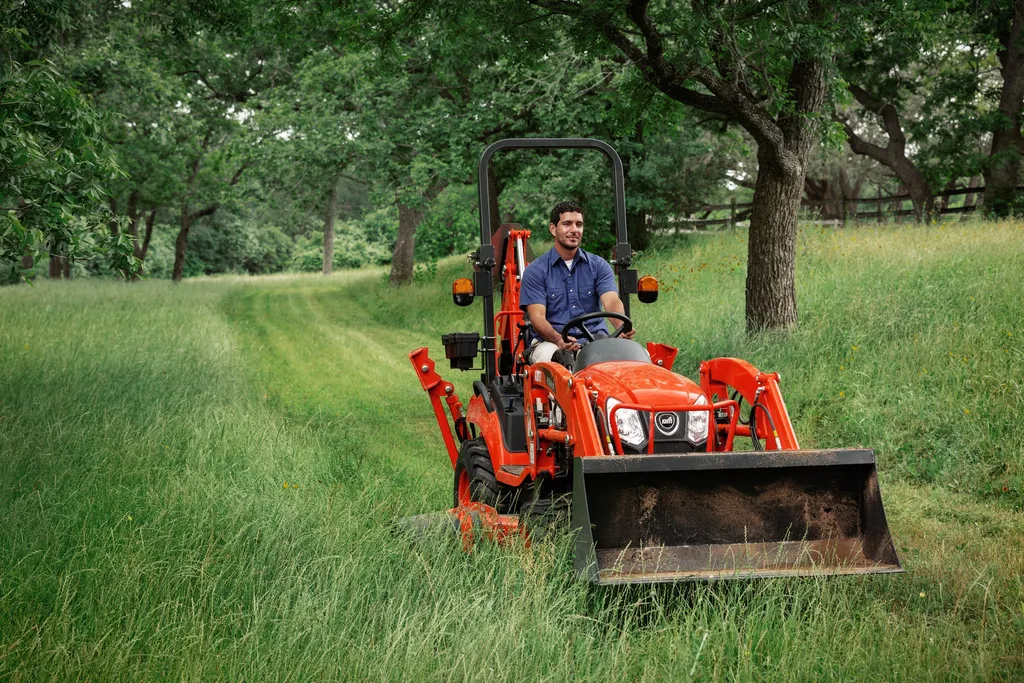

KIOTI CS2520H
A sub-compact CS Series tractor with independent PTO and cruise control - sized for loader work, mowing, and everyday property chores.
Starting at
$17,799 MSRP
24.5 hp
24.5 hp (18.3 kW)
Engine HP
18.5 hp
18.5 hp (13.8 kW)
PTO HP
700 lb
700 lb (318 kg) @ 24" aft of hitch
3-Pt Lift Capacity
7 gpm
7.0 gpm (26.4 L/min), gear pump
Hydraulic Flow
1,554 lb
1,554 lb (705 kg) with AG tires
Operating Weight
Full Specifications
Complete manufacturer specifications for the KIOTI CS2520H.
Engine
- Gross Horsepower
- 24.5 hp (18.3 kW)
- PTO Horsepower
- 18.5 hp (13.8 kW)
- Engine Model
- KIOTI 3C100LFH-U2, 3-cyl water-cooled turbo diesel
- Displacement
- 61.5 cu in (1,007 cc)
- Rated RPM
- 3,200 rpm
- Fuel Capacity
- 6.7 gal (25.5 L)
Drivetrain
- Transmission
- Infinite 2-range hydrostatic (HST)
- Drive
- 4WD, mechanical engagement
PTO
- Rear PTO
- 540 rpm, independent
- Mid PTO
- 2,000 rpm (optional)
Hydraulics
- Hydraulic Flow
- 7.0 gpm (26.4 L/min), gear pump
3-Point Hitch
- Category
- Category I
- Lift Capacity
- 700 lb (318 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 99.3 in (2,523 mm), incl. 3-pt hitch
- Overall Width
- 45.9 in (1,168 mm), min tread
- Overall Height
- 87.6 in (2,226 mm), top of ROPS
- Wheelbase
- 55.1 in (1,400 mm)
- Ground Clearance
- 6.4 in (162 mm)
- Turning Radius
- 8.2 ft (2.54 m) with brake
- Operating Weight
- 1,554 lb (705 kg) with AG tires
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- Single-lever joystick
- Cruise control
- Tilt steering wheel
- USB + 12V power
- Foldable ROPS
- Independent rear + mid PTO
Factory Attachments
KIOTI factory-matched attachments for the CS2520H.
Front-End Loader
SL2420
- Max Lift Height (Pivot Pin)
- 73.7 in (1,872 mm)
- Lift Capacity to Full Height (Pivot Pins)
- 1,062.3 lb (482 kg)
- Breakout Force (Pivot Pins)
- 1,329 lb (603 kg)
- Bucket Rollback Force (Ground Line)
- 904 lb (410 kg)
- Bucket Size
- 48 in
Backhoe
SB2420
- Digging Depth (Two Foot Flat Bottom)
- 72.8 in (1,850 mm)
- Bucket Digging Force
- 2,105 lb (955 kg)
- Dipperstick Digging Force
- 1,183 lb (537 kg)
- Reach from Swing Pivot
- 105.7 in (2,684 mm)
- Loading Height (Bucket at 60 deg)
- 59.1 in (1,500 mm)
Mid-Mount Mower
SM2460
- Cutting Width
- 60 in (1,524 mm)
- Deck Type
- Side discharge, spiral bevel gear drive, 10 gauge deck
- Cutting Height Range
- 0.80 - 3.80 in
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
How it compares
Who This Fits
The CS2520H is a good fit for property owners running a few acres. Mowing, brush hogging, moving gravel or firewood, and general chores where a loader and a PTO implement cover most of the workload. It's sized to be easy to store, easy to trailer, and easy to learn on if this is a first tractor.
Common Questions
What transmission does the CS2520H come with?
The CS2520H runs a hydrostatic transmission (HST). No clutching, just pedal-controlled forward and reverse. It's the easiest transmission to learn on and the most common choice for loader work, mowing, and general chores.
Is a front loader available for the CS2520H?
Yes — KIOTI offers a factory-matched front-end loader for the CS2520H. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new CS2520H?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
