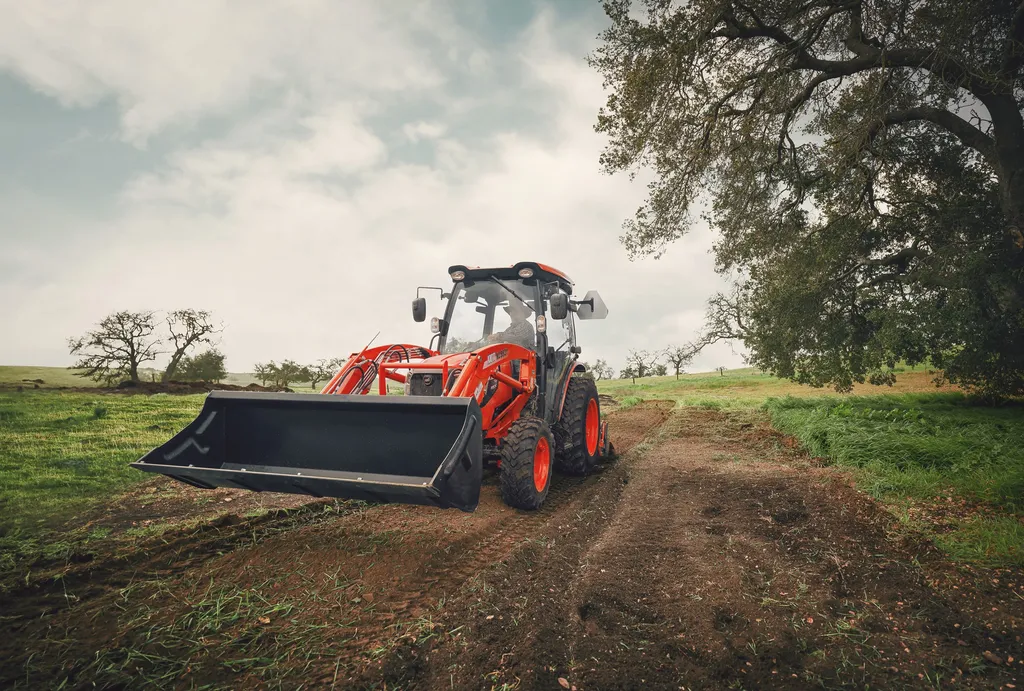

KIOTI DK5320
KIOTI's most powerful compact class — utility-grade lift and hydraulics that stay nimble enough for tight spaces.
Starting at
$36,006 MSRP
50.3 hp
50.3 hp (37.5 kW)
Engine HP
39.3 hp
39.3 hp (29.3 kW)
PTO HP
2,716 lb
2,716 lb (1,231.9 kg) @ 24" aft of hitch
3-Pt Lift Capacity
16.5 gpm
16.5 gpm (62.4 L/min), gear pump
Hydraulic Flow
Configurations & Pricing
The DK5320 is available in several transmission and cab configurations. Starting MSRP shown; ask us for a full quote.
| Configuration | Transmission | Starting MSRP |
|---|---|---|
| DK5320SEH | Hydrostatic 3-range | $36,006 |
| DK5320SEH Cab | Hydrostatic 3-range | $45,152 |
MSRP only. Pricing does not include tires, freight, setup, or dealer options. Ask us about current KIOTI offers.
Full Specifications
Complete manufacturer specifications for the KIOTI DK5320.
Engine
- Gross Horsepower
- 50.3 hp (37.5 kW)
- PTO Horsepower
- 39.3 hp (29.3 kW)
- Displacement
- 111.4 cu in (1,825.5 cc)
- Rated RPM
- 2,600 rpm
- Fuel Capacity
- 12.7 gal
Drivetrain
- Transmission
- Hydrostatic, 3-range
- Drive
- 4WD
PTO
- Rear PTO
- 540 rpm, independent
Hydraulics
- Hydraulic Flow
- 16.5 gpm (62.4 L/min), gear pump
3-Point Hitch
- Category
- Category I
- Lift Capacity
- 2,716 lb (1,231.9 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 125.5 in (3,189 mm), incl. 3-pt hitch
- Overall Width
- 62.8 in (1,596 mm), min tread
- Overall Height
- 96.8 in (2,458 mm), top of ROPS
- Wheelbase
- 71.3 in (1,810 mm)
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- Hydrostatic 3-range transmission
- Independent 540 rear PTO
- Deluxe suspension seat + PTO cruise
- 16.5 gpm hydraulics
- 2,716 lb 3-pt lift
- ROPS or factory cab
Factory Attachments
KIOTI factory-matched attachments for the DK5320.
Front-End Loader
KL5521
- Max Lift Height (Pivot Pin)
- 107.7 in (2,735 mm)
- Lift Capacity to Full Height (Pivot Pins)
- 2,474 lb (1,122 kg)
- Breakout Force (Pivot Pins)
- 3,895 lb (1,767 kg)
- Digging Depth Below Grade
- 8.6 in (218 mm)
- Bucket Size(s) Available
- 66 in / 72 in
Backhoe
KB2485
- Compatibility
- Fits DK20, DK20SE, NS, NX, RX6620, RX6620C, RX6620P, and RX6620PC tractors
- Digging Depth (Two Foot Flat Bottom)
- 94.4 in (2,400 mm)
- Bucket Digging Force
- 3,748 lb (1,700 kg)
- Dipperstick Digging Force
- 2,205 lb (1,000 kg)
- Reach from Swing Pivot
- 136.1 in (3,460 mm)
- Loading Height (Bucket at 60 deg)
- 80.3 in (2,040 mm)
- Operating Pressure
- 2,466 psi (170 bar)
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
How it compares
Who This Fits
The DK5320 is for real work on real acreage. Feeding animals, clearing brush, running a rotary cutter for hours at a stretch. It handles full-size implements without full-size bulk, and it's the class we sell most to small farms around here.
Common Questions
What transmission does the DK5320 come with?
The DK5320 runs a hydrostatic transmission (HST). No clutching, just pedal-controlled forward and reverse. It's the easiest transmission to learn on and the most common choice for loader work, mowing, and general chores.
Is a front loader available for the DK5320?
Yes — KIOTI offers a factory-matched front-end loader for the DK5320. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new DK5320?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
