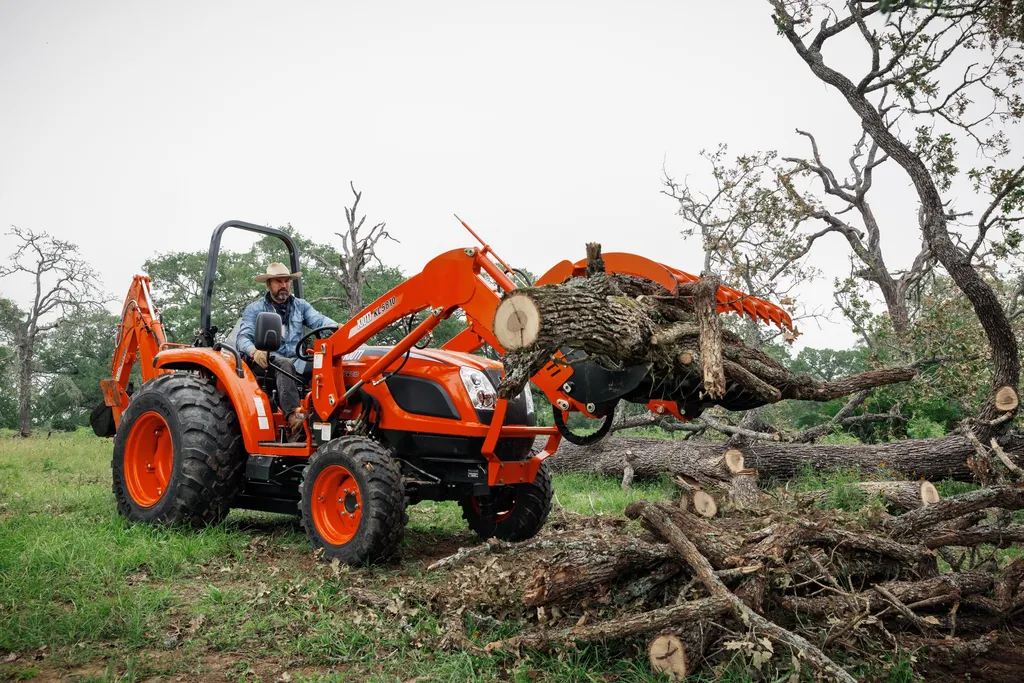

KIOTI NS6010
A 57.7-horsepower compact utility tractor at the top of the NS Series — synchro-shuttle or hydrostatic, ROPS or factory cab, with a Category II hitch and independent 540 PTO.
Starting at
$40,403 MSRP
57.7 hp
57.7 hp (43.0 kW)
Engine HP
48.3 hp
48.3 hp (36.0 kW)
PTO HP
2,940 lb
2,940 lb (1,333.6 kg) @ 24" aft of hitch
3-Pt Lift Capacity
16.5 gpm
16.5 gpm (62.4 L/min), gear pump
Hydraulic Flow
4,027 lb
4,027 lb (1,827.0 kg), w/ AG tires
Operating Weight
Configurations & Pricing
The NS6010 is available in several transmission and cab configurations. Starting MSRP shown; ask us for a full quote.
| Configuration | Transmission | Starting MSRP |
|---|---|---|
| NS6010 (Synchro Shuttle) | Synchro Shuttle 12x12 | $40,403 |
| NS6010H (HST) | Hydrostatic 3-range | $43,190 |
| NS6010C (Synchro Shuttle, Cab) | Synchro Shuttle 12x12 | $48,543 |
| NS6010C HST (HST, Cab) | Hydrostatic 3-range | $51,328 |
MSRP only. Pricing does not include tires, freight, setup, or dealer options. Ask us about current KIOTI offers.
Full Specifications
Complete manufacturer specifications for the KIOTI NS6010.
Engine
- Gross Horsepower
- 57.7 hp (43.0 kW)
- PTO Horsepower
- 48.3 hp (36.0 kW)
- Engine Model
- KIOTI 3HT-S4TH45A, 3-cyl water-cooled turbo diesel, CRDI
- Displacement
- 111.4 cu in (1,826.0 cc)
- Rated RPM
- 2,600 rpm
- Fuel Capacity
- 13.2 gal (50.0 L)
Drivetrain
- Transmission
- Synchro Shuttle 12x12 or hydrostatic 3-range (by configuration)
- Drive
- 4WD (push-button)
PTO
- Rear PTO
- 540 rpm, independent
- Mid PTO
- 2,000 rpm (optional)
Hydraulics
- Hydraulic Flow
- 16.5 gpm (62.4 L/min), gear pump
3-Point Hitch
- Category
- Category II
- Lift Capacity
- 2,940 lb (1,333.6 kg) @ 24" aft of hitch
Dimensions
- Overall Length
- 136.4 in (3,465.0 mm), incl. 3-pt hitch
- Overall Width
- 67.1 in (1,704.3 mm), min tread
- Overall Height
- 98.4 in (2,499.4 mm), top of ROPS
- Wheelbase
- 75.5 in (1,918 mm)
- Ground Clearance
- 13.4 in (340.4 mm)
- Turning Radius
- 11.0 ft (3.4 m), with brake
- Operating Weight
- 4,027 lb (1,827.0 kg), w/ AG tires
Specs sourced from official KIOTI manufacturer literature, current as of July 2026.
Standard Highlights
- Push-button 4WD
- Category II 3-point hitch
- Independent 540 rear PTO
- 16.5 gpm hydraulics
- 2,940 lb 3-pt lift
- Synchro Shuttle or HST, ROPS or factory cab
Factory Attachments
KIOTI factory-matched attachments for the NS6010.
Front-End Loader
KL5810
- Maximum Lift Height (To Pivot Pin)
- 106.3 in (2,700.0 mm)
- Maximum Lift Height (Under Level Bucket)
- 100.9 in (2,562.9 mm)
- Lift Capacity (At Pivot Pin)
- 2,621.0 lb (1,188.9 kg)
- Breakout Force (At Pivot Pin)
- 3,896.0 lb (1,767.2 kg)
- Rollback Force (At Ground Line)
- 3,880.0 lb (1,759.9 kg)
- Reach (With Bucket on Ground)
- 74.4 in (1,889.8 mm)
- Digging Depth Below Grade
- 10.2 in (259.1 mm)
- Maximum Dump Angle
- 67 deg
Backhoe
KB2485
- Digging Depth
- 94.4 in (2,397.8 mm)
- Reach from Center Line of Swing Pivot
- 136.1 in (3,456.9 mm)
- Loading Height (Bucket at 60 deg)
- 80.3 in (2,039.6 mm)
- Bucket Digging Force
- 3,748.0 lb (1,700.1 kg)
- Dipperstick Digging Force
- 2,205.0 lb (1,000.2 kg)
- Operating Pressure
- 2,466.0 psi (170.0 bar)
These are the factory attachments matched to this tractor. We'll confirm exact fit when we quote it.
How it compares
Who This Fits
The NS6010 is for real work on real acreage. Feeding animals, clearing brush, running a rotary cutter for hours at a stretch. It handles full-size implements without full-size bulk, and it's the class we sell most to small farms around here.
Common Questions
What transmission does the NS6010 come with?
The NS6010 comes more than one way: Synchro Shuttle 12x12 or hydrostatic 3-range (by configuration). HST is the easiest to learn and the favorite for loader work and mowing. The gear option costs less and pulls steadily all day. We'll help you pick when we quote it.
Is a front loader available for the NS6010?
Yes — KIOTI offers a factory-matched front-end loader for the NS6010. You'll find the exact loader model and its published specs in the Factory Attachments section above. Ask us for the current loader package and pricing when you request a quote.
What warranty comes with a new NS6010?
New KIOTI tractors carry KIOTI's factory warranty, with powertrain coverage that runs longer than the base warranty. Exact terms can change by model year and promotion, so we'll confirm the current coverage when we quote your unit.
